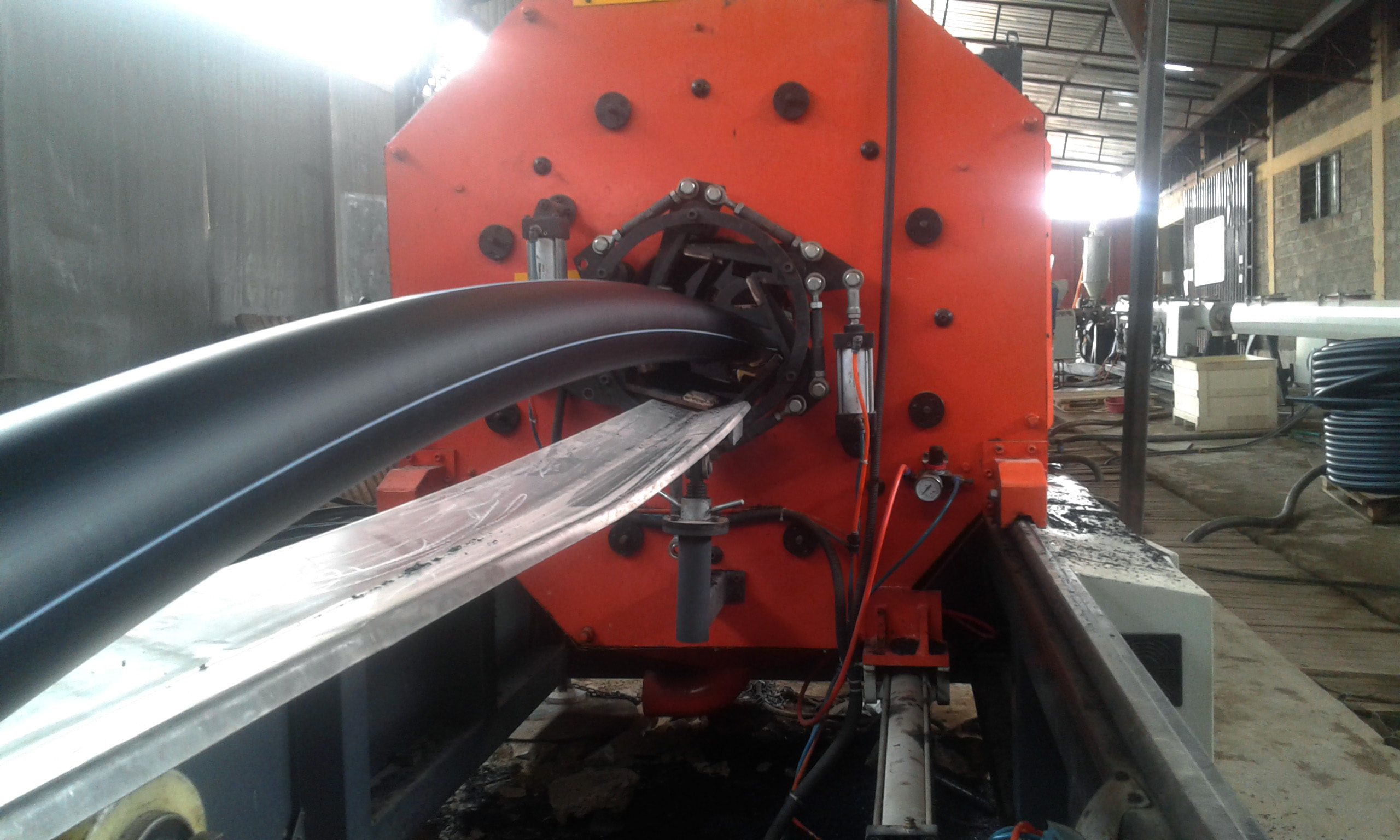

HDPE Pipes
HDPE pressure pipes is made of high density Polythylene PE 100 (HDPE) Plastic Material for the manufacture of high pressure pipes.
Due to its chemical resistance property, it is used in piping system.
Analysis report of Raw materials PE 100
Description
Borstar HE3490-LS is a black, bimodal, high density polythene classified as a MRS 10.0 material (PE 100) produced by the advanced borstar technology. We dispersed carbon black gives outstanding UV resistance. Long term stability is ensured by an optmised stabilization system.
Physical properties
Physical Properties
Density (Base resin)
Density (Compound)
Melt Flow Rate (190 C/2.16Kg)
Melt Flow Rate (190 C/5.0Kg)
Tensile Stress at yield (50 mm/min)
Elongation at break
Chapy Impact, Notched (0oC)
Hardness, Shore D
Carbon Black contenet
Brittleness Temperature
ESCR (10% igepal)F
Thermal Stability (210oC)
Density (Base resin)
Density (Compound)
Melt Flow Rate (190 C/2.16Kg)
Melt Flow Rate (190 C/5.0Kg)
Tensile Stress at yield (50 mm/min)
Elongation at break
Chapy Impact, Notched (0oC)
Hardness, Shore D
Carbon Black contenet
Brittleness Temperature
ESCR (10% igepal)F
Thermal Stability (210oC)
Typical value
949
949
<0.1
0.25
25
>600
16
60
>2
<-70
>10000
>15
949
949
<0.1
0.25
25
>600
16
60
>2
<-70
>10000
>15
Unit
kg/m3
g/10min
g/10min
Mpa
%
kj/m2
-
%
oC
h
min
kg/m3
g/10min
g/10min
Mpa
%
kj/m2
-
%
oC
h
min
Test method
ISO 1183/ISO1872-2B
ISO 1183/ISO1872-2B
ISO 1133
ISO 1133
ISO 527-2
ISO 527-2
ISO 179/1eA
ISO 868
ASTM D 1603
ASTM D 746
ASTM D 1693-A
EN728
ISO 1183/ISO1872-2B
ISO 1183/ISO1872-2B
ISO 1133
ISO 1133
ISO 527-2
ISO 527-2
ISO 179/1eA
ISO 868
ASTM D 1603
ASTM D 746
ASTM D 1693-A
EN728
HDPE pipes are used for:
- 1Drinking water supply line
- 2 Water linesin hills areas
- 3Irrigation lines
- 4Sewage and gas lines
- 5Fuel gas line and industrial effluent disposal lines
HDPE pipes are available in 16mm Diameter to 300mm and pressure rating: PN -6.3, PN-8, PN-10, PN-12.5, PN-16, PN-20 and PN-25
